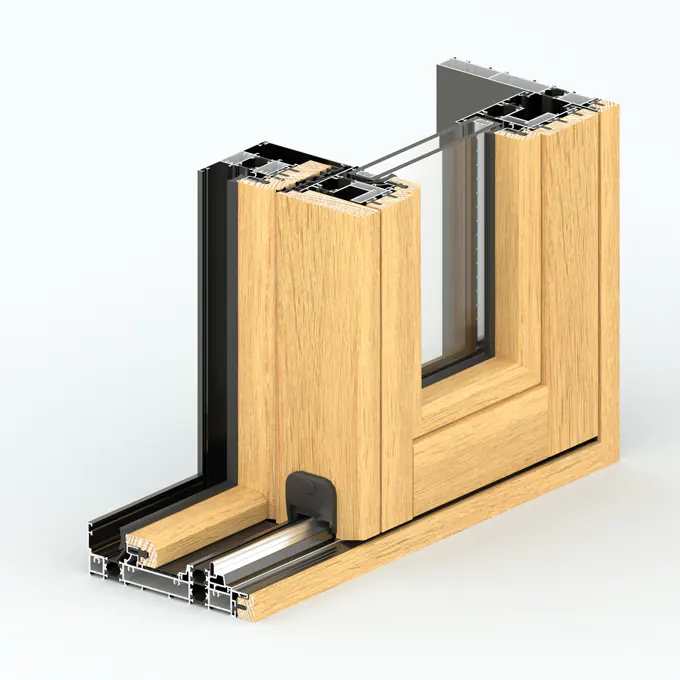

Aluwood Series | Lift & Slide 185


Modern, large-format wooden aluminium lift sliding doors for garden exits, terraces and balconies are a recommended and space-saving solution for very large door openings. It offers effective thermal protection, maximum sealing, outstanding stability, and safety. Its large area windows provide excellent illumination of the interior. It allows large and heavy doors of this type to be moved with minimal effort.

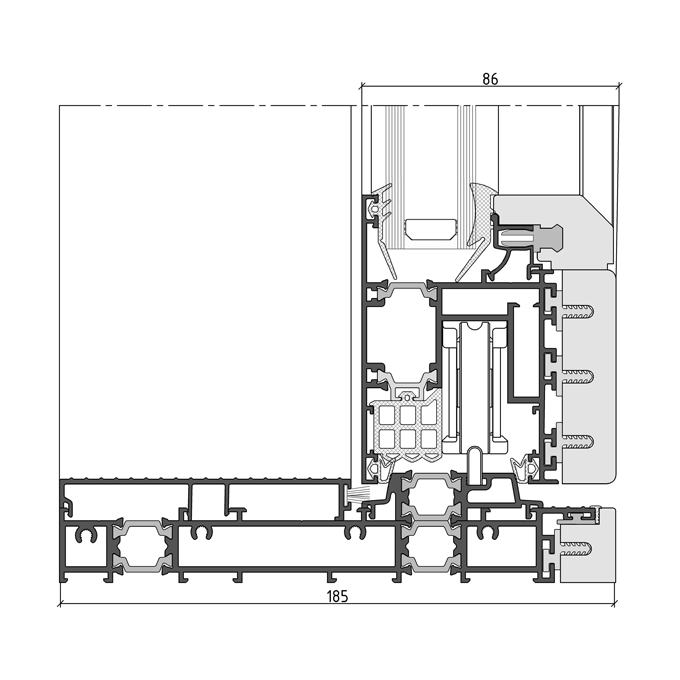

  • The profiles have a construction depth of a 186 mm frame and vent of 85 mm
  • Supports glazing up to 42 mm or 400 kg per sash
  • Ideal for large size openings
  • Weather sealing by use of EPDM gaskets
  • Polyamide at 20 mm for increased thermal-insulation
  • Windows accessories in European standards
  • Water based European colors and varnishes
Uf 2.35 W/m²K
Ug 0.6 W/m²K
* Uw 1.26 W/m²K

* Calculated according to EN 10077-2:2017 on a 2400x2600 mm one wing window with Ug=0.6W/m²K glass.
